Capsule Bottle
Configuration shown · bottle with closure / capsules, liner, desiccant and label not shown

Healthcare & Pharmaceutical

Capsule Bottle

A bottle for hard capsules, with a moisture range selected for the shell and fill. Gelatin shells can become brittle when over-dried or soften when exposed to excessive moisture.

Control humidity within a validated rangeGelatin and HPMC differAssess static during filling and dispensing
Stock status
In stock
Lead time
2–3 weeks

Final availability, dimensions, materials, assembled components and commercial terms are confirmed against the selected drawing and approved sample.

Over-drying can embrittle shells

Select desiccant from stability data

HPMC has different moisture characteristics

Review packaging when shell material changes

Capsules move differently

Light, smooth and prone to static

Capsule Bottle profile

Capsule packaging must balance moisture control with shell and fill stability.

Shell chemistry, humidity windows & handling

Six capsule-packaging considerations, from moisture control to dispensing.

Gelatin capsule shells require a suitable moisture balance. Excess humidity can soften them, while excessive drying can make them brittle. Select the bottle, closure and any desiccant around the complete filled capsule and its stability requirements. A change to HPMC or another shell material warrants a fresh assessment of the packaging system.

01

Set a suitable moisture range for the capsule

Gelatin shells need a controlled moisture balance. Excessive drying can make them brittle, while high humidity can cause softening and sticking. Select the desiccant and closure around the filled capsule’s stability requirements rather than assuming the driest possible pack is best.

02

Identify the shell material before selecting the pack

HPMC and gelatin shells have different moisture characteristics. A change in shell material therefore warrants a review of the packaging and desiccant, even if the fill, count and bottle remain the same.

03

Test the filled capsule in the intended container

The fill can exchange moisture or interact with the shell. Evaluate the complete capsule in the proposed bottle and closure rather than relying on empty-shell storage data alone.

04

Assess counting, filling and dispensing

Capsule shape, low mass and static behavior can affect counting-line performance and dispensing from the bottle. Review these factors alongside fill level and any protective packing material.

05

Include packaging in dissolution investigations

Gelatin cross-linking can affect dissolution without an obvious change in appearance. Where dissolution changes during stability testing, assess possible interactions involving the formulation and packaging materials as part of the investigation.

06

Match bottle volume to count and protection needs

Excess space can allow capsules to move during distribution, while too little can make filling and dispensing difficult. Select bottle volume and any packing material around the actual capsule count, geometry and transport testing.

Application guide

Review capsule visibility alongside the product’s protection requirements.

Clear glass displays capsule color, fill appearance and any visible damage or powder residue. Choose it only after considering the product’s light sensitivity and finished-pack stability. Bottle volume, capsule count and transport settling should be reviewed together.

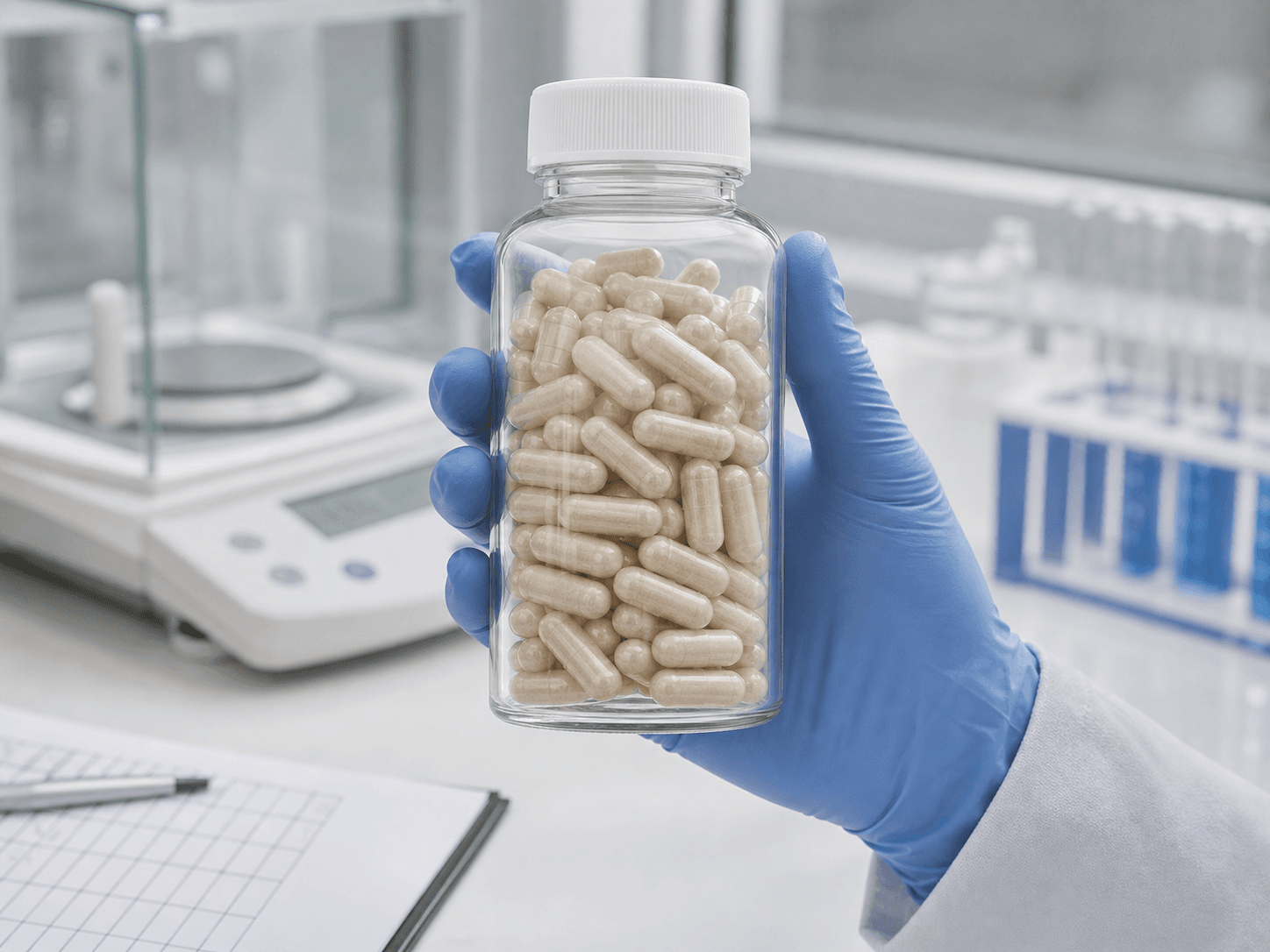

Gloved hand holding a clear bottle filled with capsules

Visible quality

Capsule appearance through clear glass

For pharmaceutical or supplement packs where the capsules are visible through the bottle. Review filled samples for count presentation, dust and broken capsules, including after distribution testing. Set the bottle volume around the actual capsule dimensions and count rather than appearance alone.

  • Review the fill appearance through glass
  • Check for dust and broken capsules
  • Match bottle volume to the capsule count

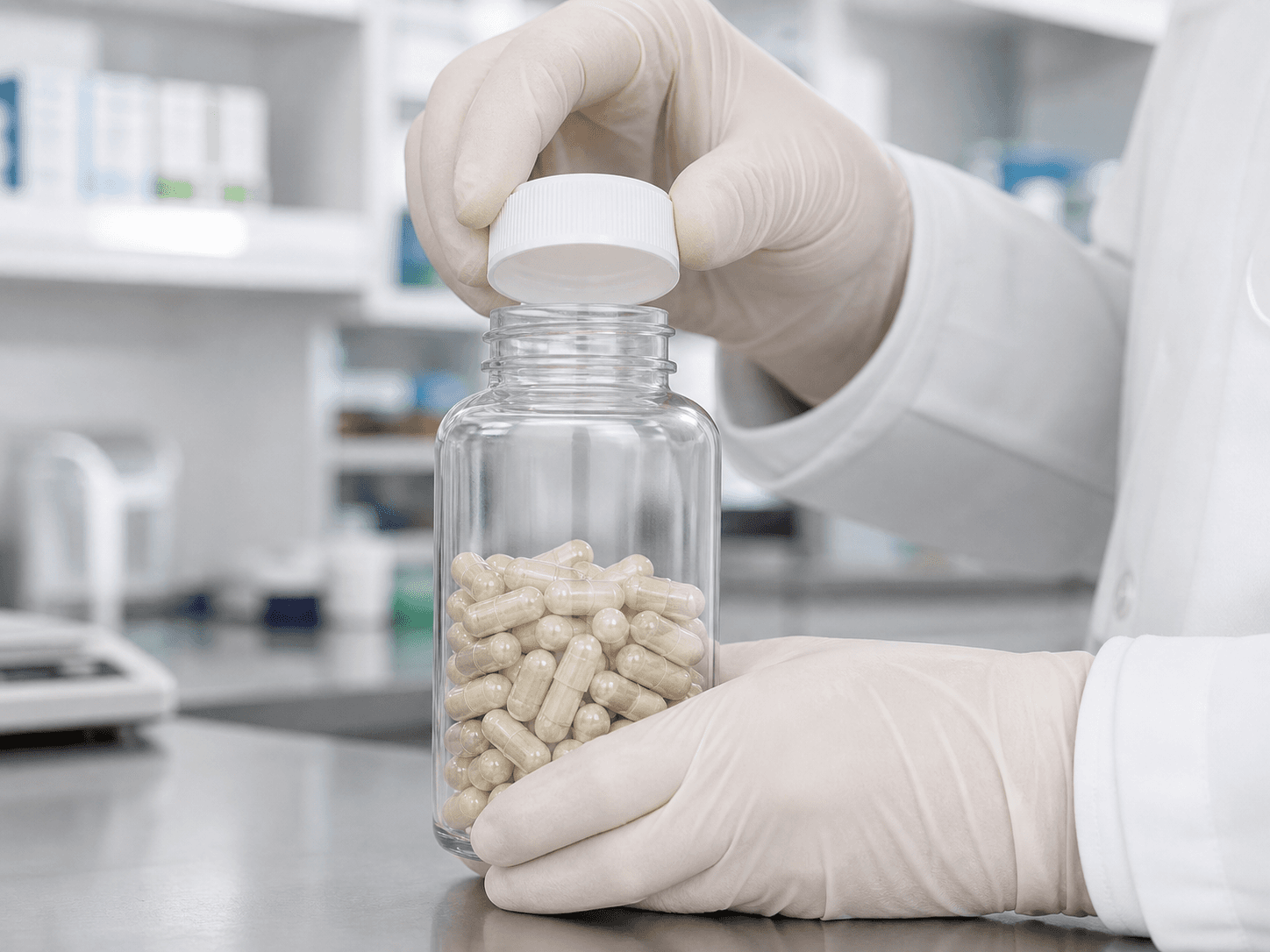

Gloved hands removing a white cap from a capsule bottle

First opening

Fill level and capsule settling

Capsules can settle during transport, changing the visible space above the fill. Select bottle volume and any protective packing material around the actual count, capsule geometry and stability requirements. Assess movement, dispensing and appearance after distribution rather than adding filler solely to make the bottle look full.

  • Manage headspace after settling
  • Assess whether protective packing material is needed
  • Test appearance after transit
Shopper examining capsules through a clear bottle

Glass color selection

Visibility and light-protection requirements

Clear glass offers a direct view of the capsules, while amber provides different light-transmission characteristics. Neither color alone establishes protection for a particular formulation. Select the glass using light-sensitivity and stability data for the complete capsule in the intended pack, alongside the desired presentation.

  • Check light sensitivity before choosing clear
  • Run stability tests in the actual pack
  • Balance visibility with validated protection needs

Confirm capsule stability, moisture control, closure performance and any child-resistance or tamper-evidence requirements for the complete pack.

FAQ

Capsule Bottle questions

Questions about shell material, moisture balance, desiccant selection and bottle fill.

Should we add desiccant to a capsule pack?

Base that decision on the shell, fill and finished-pack stability data. Gelatin requires a suitable moisture balance, so adding desiccant without assessing the complete system can create problems.

Does it matter whether shells are gelatin or HPMC?

Yes. The shell materials have different moisture characteristics. Review the container, closure and any desiccant when changing shell type.

Our dissolution is slowing during stability testing. Could it be the packaging?

Packaging is one possible contributor and belongs in the investigation. Assess formulation and material interactions together rather than assigning the cause from the dissolution trend alone.

How is the fill matched to the bottle?

Choose bottle volume around the actual capsule dimensions and count. Check filling, dispensing and movement during transport, including any proposed packing material.

Next step

Send us the Capsule Bottle brief.

Share your product, fill volume, preferred closure and destination market. We will review the matching drawings, available configurations and sample options before preparing a quote.

  • 01Send the briefProduct, volume, closure and market
  • 02Get the optionsMatching drawings and configurations
  • 03Approve the sampleConfirm the pack before production
