Diagnostic Reagent Bottle
Configuration shown · Clear rectangular bottle with a blue screw cap

Healthcare & Pharmaceutical

Diagnostic Reagent Bottle

We select diagnostic reagent bottles to match the analyzer’s rack, probe, closure and identification requirements as well as the reagent formulation.

Analyzer-specific fitBase geometry matched to probe reachDefined identification area
Stock status
In stock
Lead time
2–3 weeks

Final availability, dimensions, materials, assembled components and commercial terms are confirmed against the selected drawing and approved sample.

Dimensioned to the instrument

Racks and probes fix the envelope

Dead-volume management

Review residual volume below the probe’s reach

Machine-readable identification

Barcode position matched to the instrument

Diagnostic Reagent Bottle profile

Reagent packaging matched to analyzer requirements

Instrument fit, dead volume & identification

Instrument fit, accessible volume and reagent identification

A diagnostic reagent bottle must fit the analyzer’s rack and allow reliable probe access and barcode reading. Bottle dimensions, closure geometry, label position and base shape are specified for the instrument, while glass and liner compatibility are assessed for the reagent.

01

Match the analyzer’s dimensional envelope

Analyzer bays accept defined bottle dimensions and closure arrangements. Establish the permitted height, footprint and probe access before selecting a fill volume. Confirm compatibility with the instrument manufacturer rather than adapting a general laboratory bottle by appearance.

02

Minimize reagent beyond the probe’s reach

Liquid below the probe’s accessible depth remains unused. Base geometry can reduce this residual volume, which is especially important for high-value reagents. Assess conical or stepped designs on the actual analyzer and verify the usable volume.

03

Specify barcode position and readability

The instrument may require the barcode at a defined height and orientation to read reagent identity, lot and expiry. Treat label placement as part of the dimensional specification. Assess print quality, abrasion resistance and readability after the intended handling and storage cycle.

04

Evaluate on-board stability separately

An opened or pierced reagent bottle can behave differently during analyzer use than during sealed storage. Evaporation can change reagent concentration and affect performance. Establish on-board stability separately using the actual closure, instrument and operating conditions.

05

Assess refrigerated handling and label durability

Where the reagent requires refrigeration or light protection, evaluate the glass and label as part of that storage system. Movement between storage and the analyzer may produce condensation. Check label adhesion and barcode readability after representative temperature cycles.

06

Test aspiration on the intended instrument

Aspiration performance depends on the probe path, liquid level, bottle geometry and reagent behavior. Internal transitions or low liquid coverage can contribute to air intake. Evaluate bubbles and delivered volume on the actual instrument rather than relying on visual inspection alone.

Application guide

Reliable reagent identification throughout the laboratory workflow

Diagnostic reagent packaging must support identification, traceability and compatible storage. Assess the bottle and label against the intended laboratory workflow and analyzer requirements.

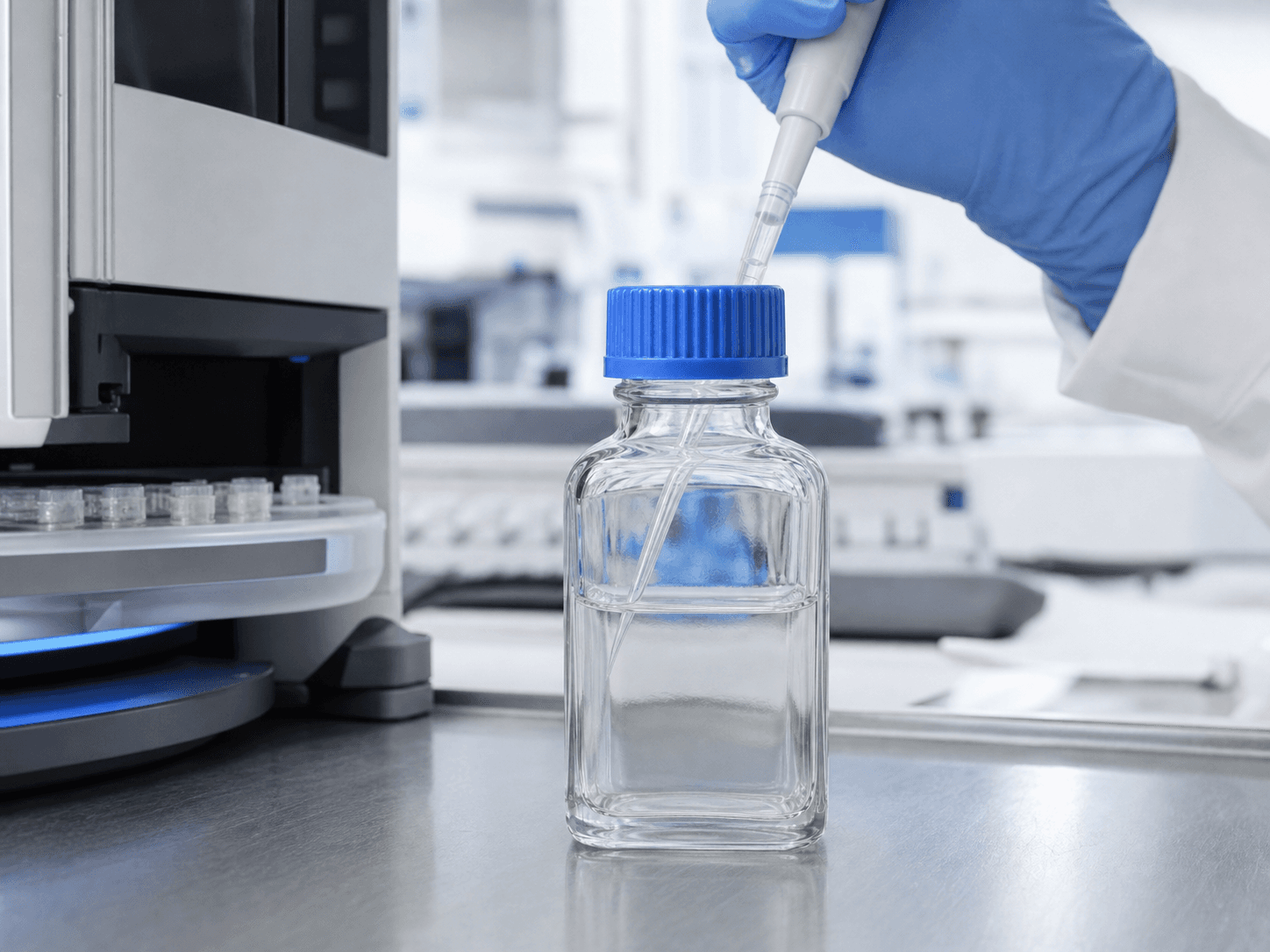

Reagent bottle beside laboratory pipetting equipment

Laboratory workflow

Reagents drawn during a test run

For bottles a technician reaches for repeatedly during a run, often among several similar containers on the same bench. A label panel positioned to face the user makes the reagent identifiable from a working position rather than requiring the bottle be picked up.

  • Confirm the label reads from the bench
  • Keep the label panel facing the user
  • Check that the bottle stands securely on the bench

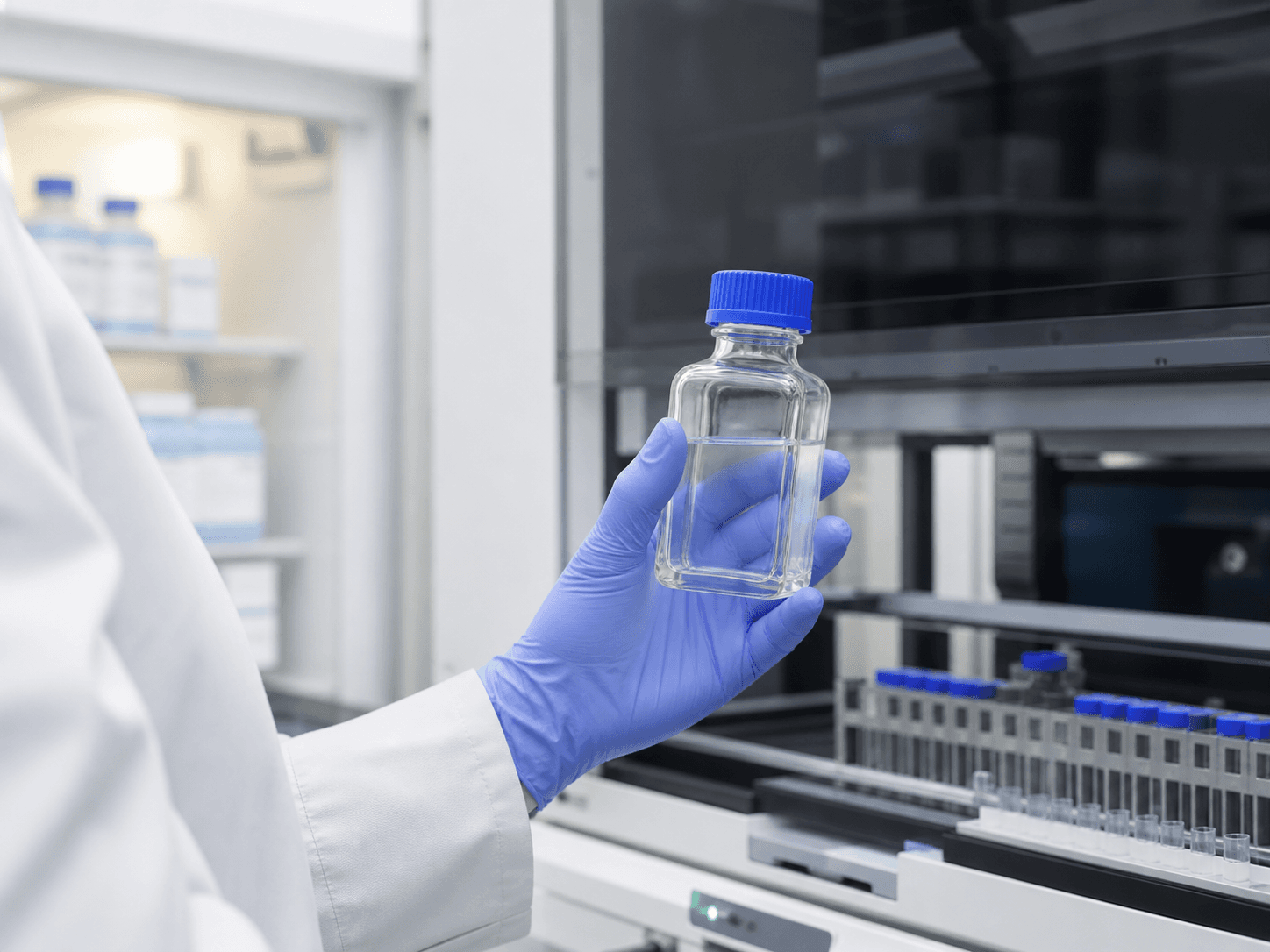

Technician holding a reagent bottle beside an analyzer

Analyzer racks

Reagent loading and lot identification

For reagents moved from refrigerated storage to an analyzer. Labels need to remain legible through condensation and routine handling so staff and instruments can identify the reagent, lot and expiry. Test the selected label system under the intended conditions.

  • Test label durability against solvents
  • Confirm legibility after refrigeration
  • Preserve batch traceability

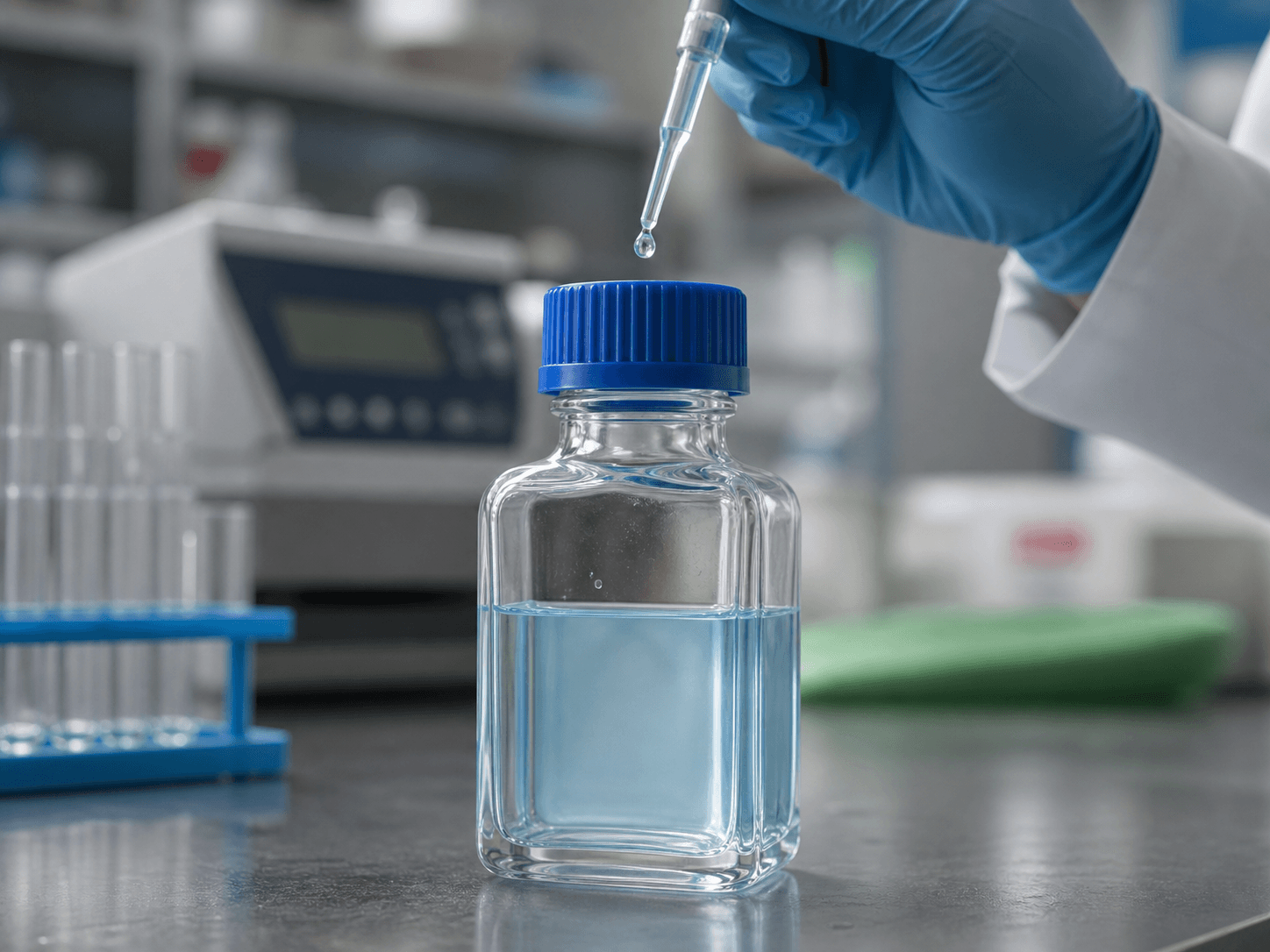

Pipette above a capped reagent bottle

Reagent contact

Reagent compatibility with glass and liners

Reagents range from mild buffers to aggressive solvents, and each behaves differently against the glass and the closure liner over the stated shelf life. Compatibility is confirmed for the specific reagent rather than assumed from the container being laboratory glassware.

  • Confirm compatibility per reagent
  • Test the liner over shelf life
  • Watch for extractables in sensitive assays

Confirm reagent compatibility, container-closure performance, storage conditions and applicable diagnostic packaging requirements for the intended use.

FAQ

Diagnostic Reagent Bottle questions

Answers on analyzer fit, probe access, identification and reagent compatibility.

Can we choose the bottle and adapt the rack?

Begin with the analyzer manufacturer’s permitted dimensions and interfaces. Confirm any alternative bottle or rack arrangement with the instrument manufacturer before use. Capacity alone is not enough to establish compatibility.

Why is barcode placement so critical?

The reader operates within a defined location and orientation. Confirm barcode position, print quality and readability after storage and handling so the analyzer can reliably identify the reagent.

What is on-board stability?

It is the reagent’s validated usable period under the analyzer’s operating conditions, distinct from sealed shelf life. Opening, piercing, temperature and evaporation can affect performance, so assess the actual bottle and instrument combination.

Why do labels fail on refrigerated reagents?

Condensation can affect an unsuitable label or adhesive. Test the label over representative transitions between refrigerated storage and use, including barcode readability.

What causes bubbles on aspiration?

Possible causes include probe position, low liquid coverage, bottle geometry and reagent behavior. Investigate them on the intended analyzer and verify aspiration performance through the usable fill range.

Next step

Send us the Diagnostic Reagent Bottle brief.

Share your product, fill volume, preferred closure and destination market. We will review the matching drawings, available configurations and sample options before preparing a quote.

  • 01Send the briefProduct, volume, closure and market
  • 02Get the optionsMatching drawings and configurations
  • 03Approve the sampleConfirm the pack before production
