Compact clear vial with a gray stopper, crimped silver seal and white flip cap
Shown configuration · vial with stopper, seal and flip cap / powder, label and cycle data not shown

Freeze-drying containers

Lyophilized Powder Vial

A vial for freeze-dried product, closed by a slotted lyophilization stopper that sits half-inserted through the cycle and is pushed home inside the chamber.

Two-position stopperStoppered inside the chamberBlowback neck common
Stock status
In stock
Lead time
2–3 weeks
FOB price / pc
$0.65 - $0.90
MOQ
3,000 pcs
Request a project quote View product profile

Final availability, dimensions, materials, assembled components and commercial terms are confirmed against the selected drawing and approved sample.

The stopper breathes

Slots let vapor out while it sits raised

Halobutyl for moisture

Butyl rubbers hold water out best

Heat path is the wall

Bottom contact drives the whole cycle

Lyophilized Powder Vial profile

The container is part of the drying equipment, not just what the product ends up in.

Two-position stoppers, heat transfer & moisture control

Five ways the container decides how the cycle behaves.

In freeze-drying the vial sits on a cooled shelf, ice sublimes out through the slots of a raised stopper, and the shelf then presses every stopper down before the chamber is opened. Vial geometry, wall thickness and stopper design all sit inside that process, so the container is qualified as part of the cycle rather than after it.

01

The stopper works in two positions

A lyophilization stopper has legs or slots so that, when it is placed half-inserted, vapor can leave the vial while the closure stays in place. At the end of the cycle the shelves close and drive every stopper fully home under vacuum or under an inert atmosphere. That single component makes the whole process possible without opening the chamber.

02

Heat reaches the product through the glass

Energy for sublimation is conducted from the shelf through the vial bottom, so bottom flatness, wall thickness and how squarely the vial sits all change the drying rate. A vial with a slightly concave base transfers less and dries more slowly than its neighbors, which shows up as an inconsistent residual moisture across a batch rather than as a visible fault.

03

Halobutyl rubber is chosen for water vapor transmission

Bromobutyl and chlorobutyl stoppers are specified because they resist moisture ingress far better than natural rubber, which matters over the shelf life of a dried product that was dried for a reason. Reported moisture vapor transmission for chlorobutyl is around 0.5 to 1.0 g·mm/m² per day at 38 °C and 90% relative humidity.

04

Stoppers absorb moisture and must be dried too

Rubber closures take up water during washing and sterilization and can give it back into the vial during storage, raising residual moisture in the cake. Drying stoppers as part of their preparation is standard practice for this reason. The container closure is a moisture reservoir as well as a barrier, and both roles are managed deliberately.

05

Blowback and stopper geometry are one decision

A blowback ridge inside the neck helps hold a raised stopper in place during handling and loading, and it resists the stopper lifting as pressure equalizes. Whether it helps or hinders depends on the stopper design, so the vial neck form and the closure are chosen together with the fill-finish equipment in the conversation.

06

Vial-to-shelf contact decides how evenly the batch dries

Heat reaches the product through the base, so a base that is not flat sits on a point instead of a plane and that vial lyophilizes differently from its neighbors. Base flatness is therefore a process variable in this format, and it is measured rather than assumed from the drawing.

Application guide

Freeze-drying happens with the stopper half in.

A lyophilization vial is loaded, partially stoppered, dried under vacuum and only then sealed inside the chamber. That sequence, not the shape, is what makes this a distinct format. These are development directions confirmed with the qualified process.

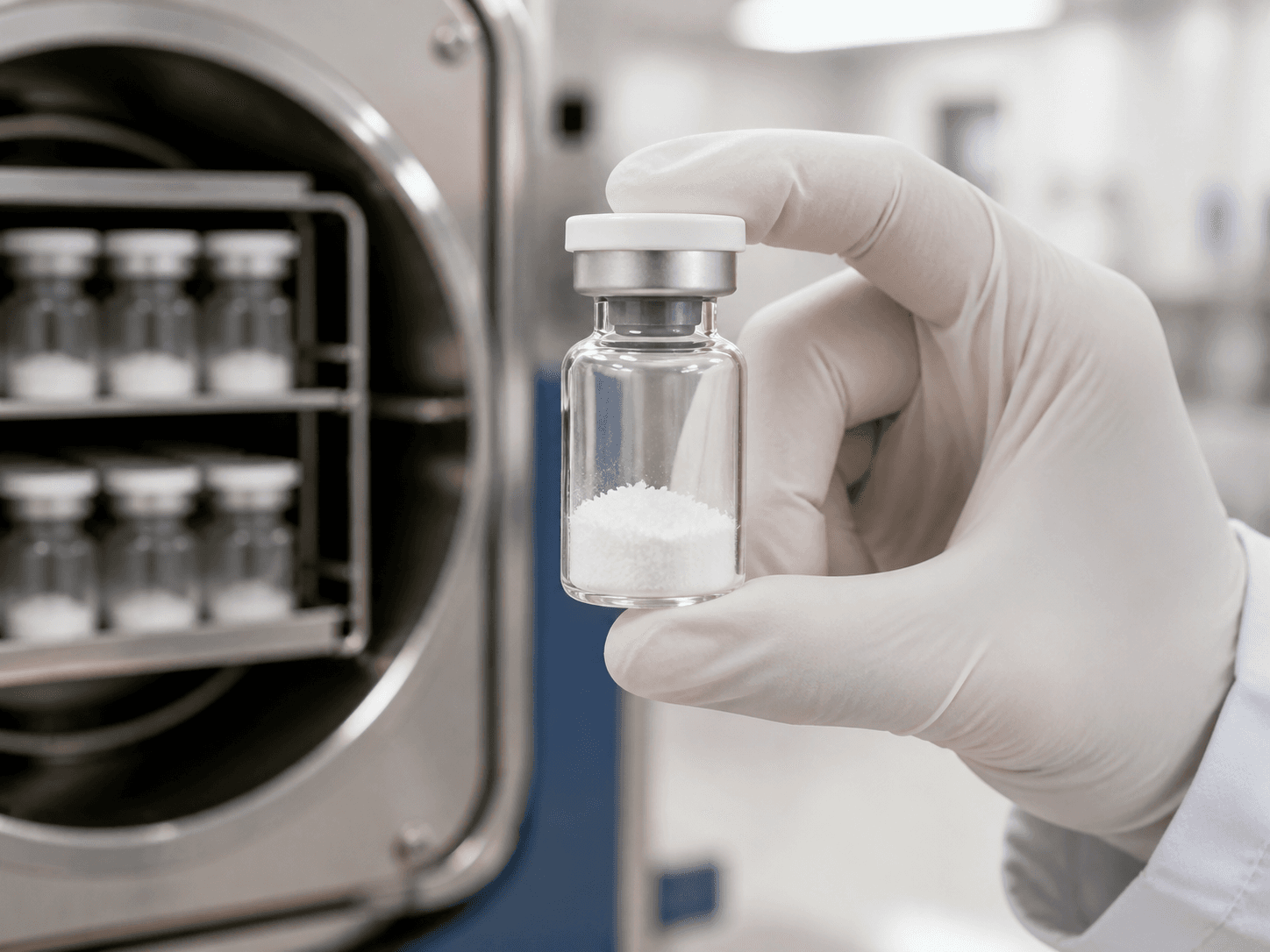

Lyophilized Powder Vial used for products stabilized by freeze-drying in a dry-product programs setting

Dry-product programs

Products stabilized by freeze-drying

For products too unstable in solution to survive a shelf life, which are dried in the vial and reconstituted immediately before use. The stopper has to sit in a partially inserted position through the drying cycle without falling in, then seat fully when the chamber closes it.

  • Confirm the stopper holds the half position
  • Qualify seating inside the chamber
  • Review cake appearance against the glass

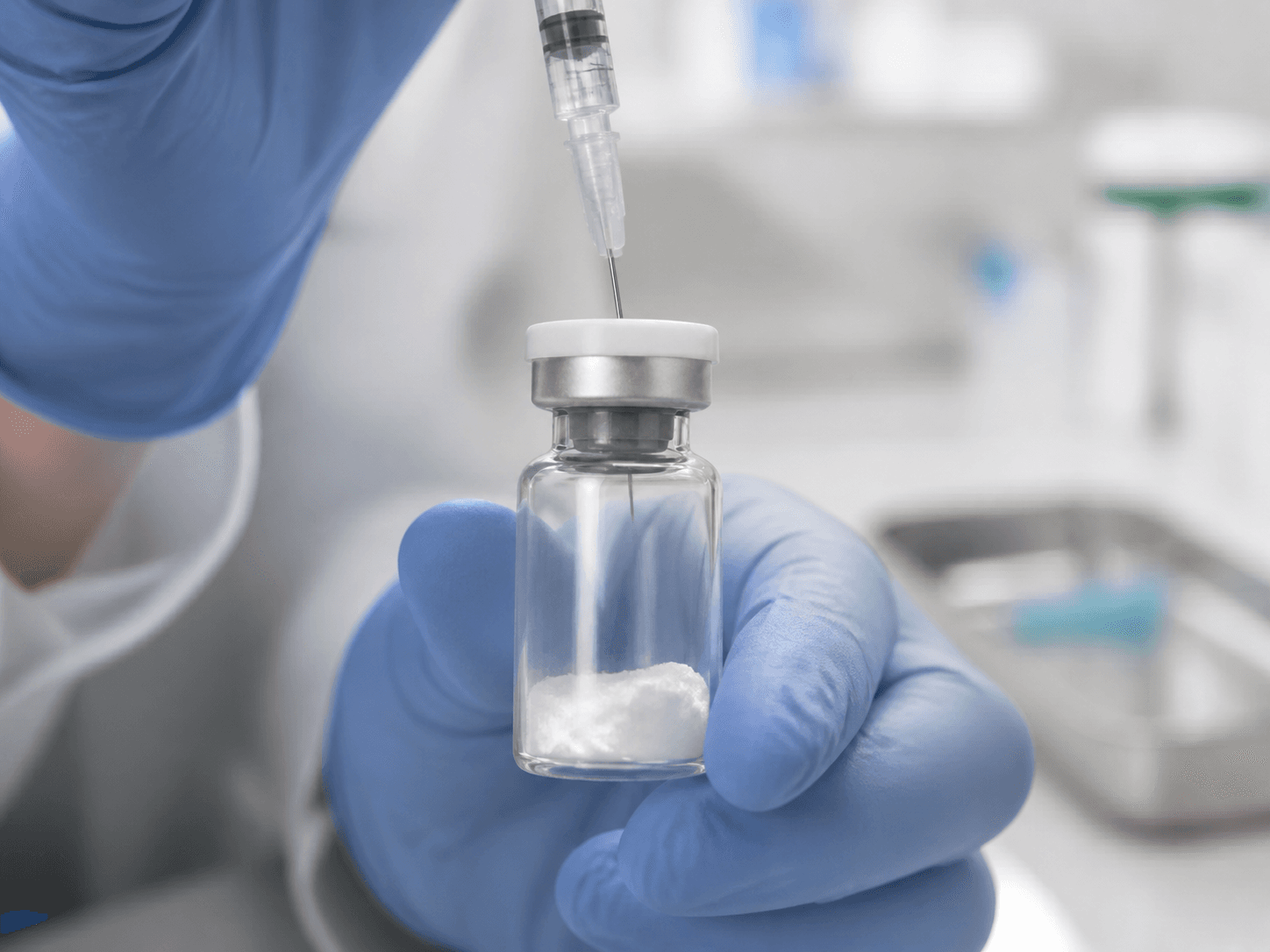

Lyophilized Powder Vial used for adding diluent at the point of use in a reconstitution setting

Reconstitution

Adding diluent at the point of use

A clinician or pharmacist injects diluent through the septum, swirls the vial until the dried cake dissolves and then withdraws the dose, frequently under time pressure on a ward. Headspace, vial geometry and how readily that cake goes back into solution all affect how quickly and how completely the reconstitution happens.

  • Allow headspace for diluent
  • Check cake dissolution time
  • Confirm the septum reseals after access

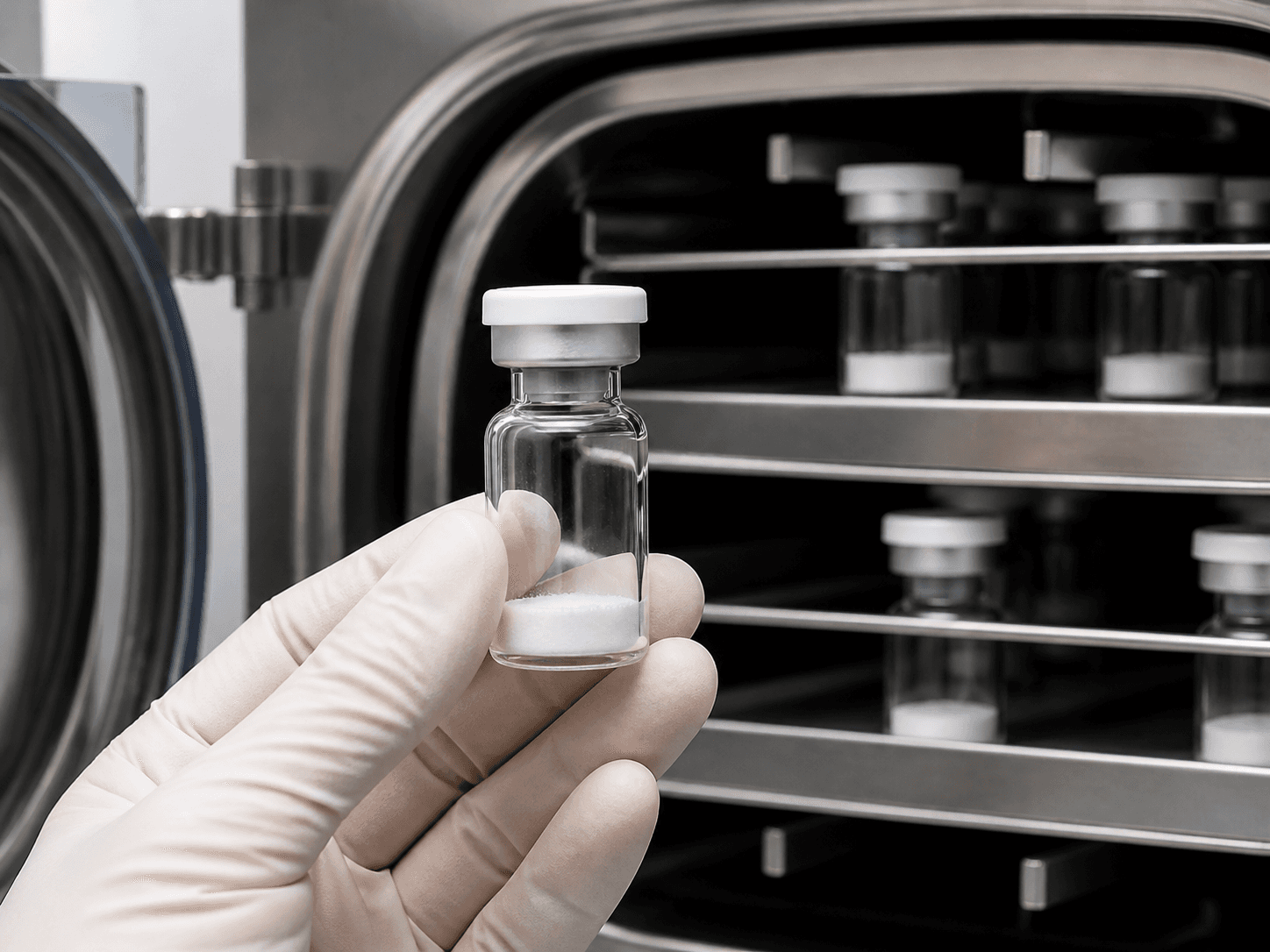

Lyophilized Powder Vial used for integrity across a vacuum cycle in a container closure setting

Container closure

Integrity across a vacuum cycle

The vial travels from ambient conditions to deep vacuum and back again while it is still only partly stoppered, which stresses the glass and elastomer interface in ways an ordinary liquid fill never does. Container-closure integrity therefore has to be demonstrated for the assembled system after that full cycle rather than before it.

  • Test integrity after the full cycle
  • Confirm glass and stopper compatibility
  • Retain evidence with the batch record

Applications describe development directions. Lyophilization, reconstitution, sterility, integrity and regulatory outcomes are confirmed for the selected program.

Common questions

Lyophilized Powder Vial questions

The vial and the cycle are one system. These questions are where they interact.

How does the vial stay closed during drying?

It does not, fully. A lyophilization stopper has legs or slots so that when it sits half-inserted, water vapor leaves through the gap while the closure stays on the vial. At the end of the cycle the shelves close and push every stopper home under vacuum or inert gas, before the chamber is opened. That component is what makes the process workable.

Why does residual moisture vary across a batch?

Usually heat transfer. Energy for sublimation comes from the shelf through the vial base, so base flatness, wall thickness and how squarely each vial sits change the drying rate. A slightly concave base dries more slowly than its neighbors and produces higher residual moisture with no visible difference in the finished unit.

Can stoppers raise the moisture in the cake?

Yes, and it is easy to miss. Rubber closures absorb water during washing and sterilization and release it into the vial over storage. Drying stoppers as part of their preparation is standard practice for exactly this reason. The closure is a moisture reservoir as well as a barrier, and both roles need managing rather than one.

How does heat reach the product?

Through the glass, by conduction from the shelf. That makes wall and base thickness process parameters rather than mechanical ones, and it is why changing vial supplier can shift a validated drying cycle even at identical nominal dimensions.
